The GENESIS DS™ Lat Pulldown/High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. The adjustable thigh pads roll for comfort and moves vertically to secure the lower body to focus on the back. Padded seat pivots out of the way to quickly transition to standing exercises. With the seat folded, the machine becomes wheelchair accessible.
FEATURES
Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
The weight stacks are enclosed to limit access to moving parts for safety.
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

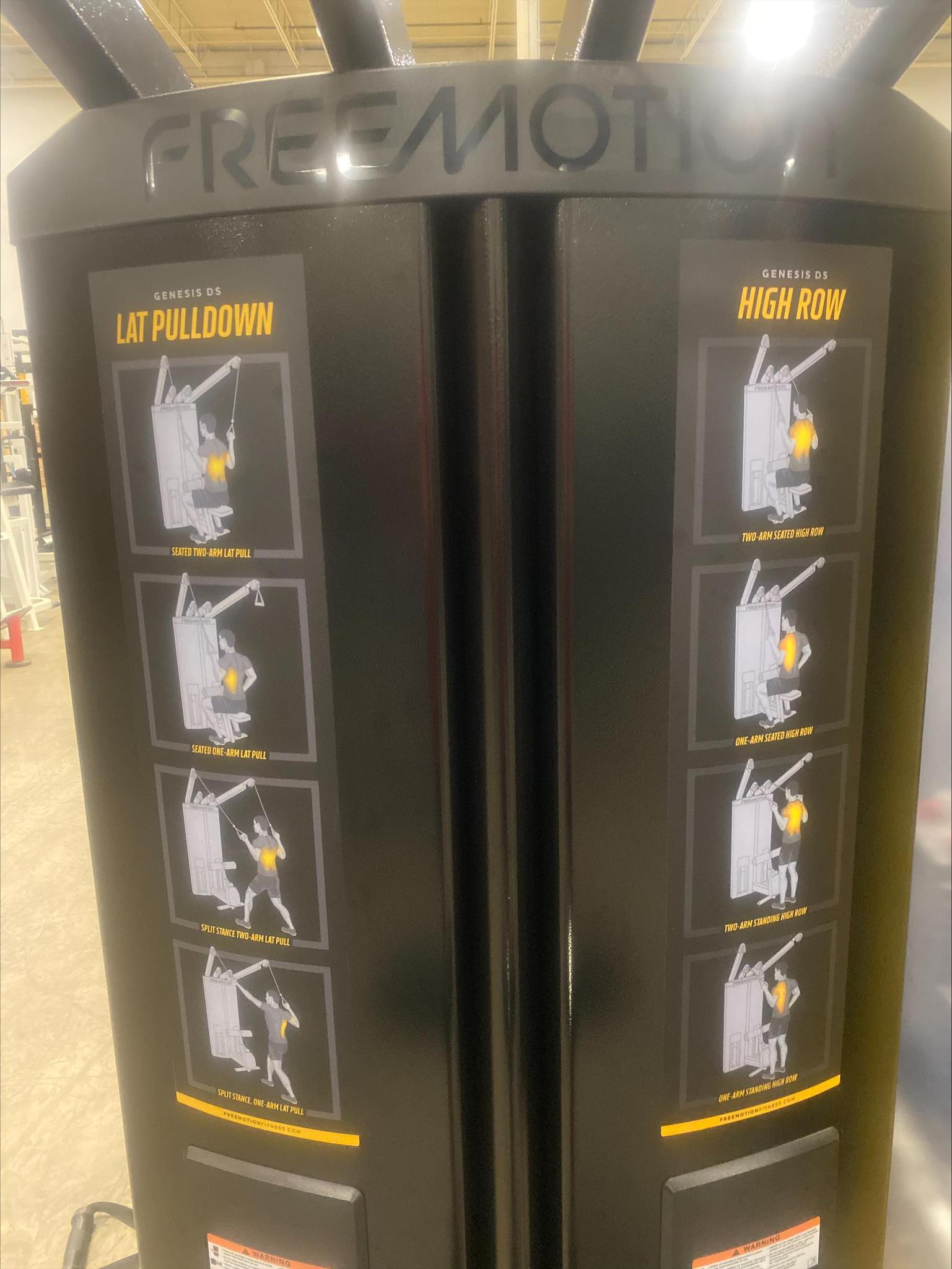

- Instructional PlacardsYes
- AdjustmentsPivot seat pad for standing lat and row movements
- Resistance1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg - SeatVinyl with 2 in / 5 cm thick foam
- PulleysAluminum swivel pulleys
- Cable Travel in (cm)72 in (182.8 cm) per arm
- Rubber FeetSoft PVC
- Maximum User Weight400 lb / 181.4 kg
- ADA CompliantWheelchair Accessible
- Weight StackQTY 2 - 180 lb / 81.6 kg weight stacks
- Drop Down WeightN/A
- Weight Stack Configuration2 - 10 lb top plates, 34 - 10 lb plates
2 - 4.5 kg top plates, 34 - 4.5 kg plates - Standard Frame ColorBlack River, Platinum Sparkle
- Optional Frame ColorN/A
- Plastic ColorEbony
- Standard Upholstery ColorBlack, Graphite, Blue Ridge, Burgundy, American Beauty Red
- Optional Upholstery ColorCustom colors available upon request
- Dimensions L x W x H54 x 48 x 84 in / 137.1 x 121.9 x 213.3 cm
- Footprint54 x 48 in / 137.1 x 121.9 cm
- Weight709.8 lb / 322 kg
- Shipping DimensionsBox 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm - Shipping Weight830 lb / 376.6 kg
- EN957,CE
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
- Genesis DS™ Line Brochure
- Product Information Sheet
- Frame and Upholstery Colors
- Warranty Information
